Thanks to the innovative FYxoss® selftap system, the screws can be threaded without predrilling into Class II-IV bone according to Adell. For Class I bone, suitable drills are included in the set. With the specially developed stop, excellent directional control and overall stability can be achieved even in challenging situations. The special tip design guarantees reduced axial forces vs. conventional self-tapping systems.

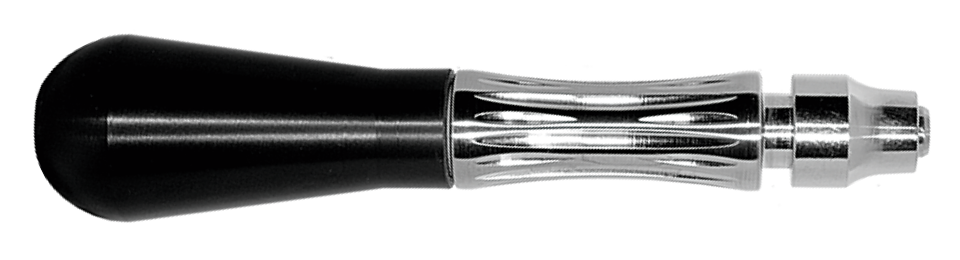

Stainless steel screwdriver with medical grade plastic polymer handle, sterilizable in class B steam autoclave up to 135°C.

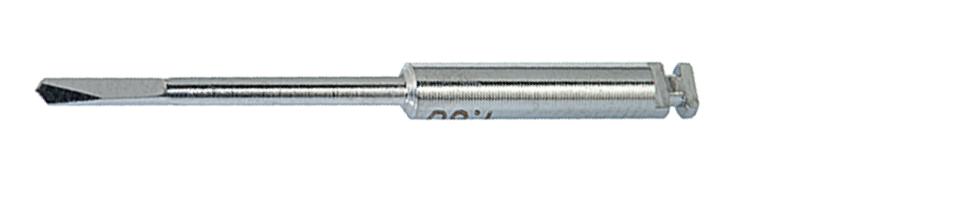

Drill: Ø 1.35 suitable for very deep drilling
maximum drilling depth: 14 mm
Drill diameter: Ø 1.0 mm
Drill: Ø 1.35 suitable for very deep holes
Maximum drilling depth: 14 mm
Drill diameter: Ø 1.0 mm

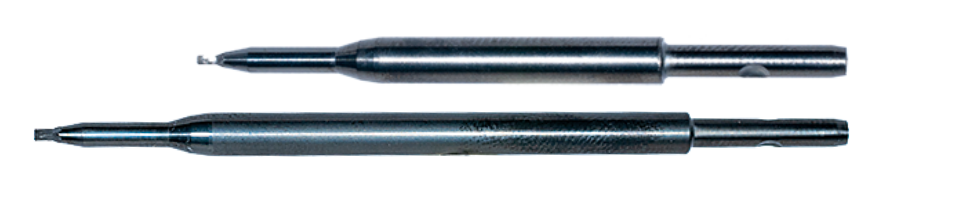

Square key: 0.8 mm
The diamond and graphite coating guarantees better abrasion and oxidation resistance (short/long)
Connection system with screw head Ø 3.0 mm
Material: Ti Gr5

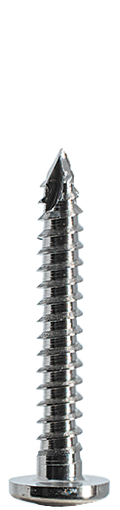

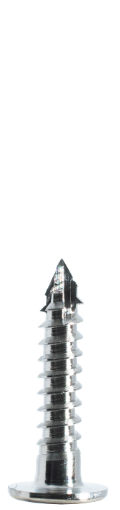

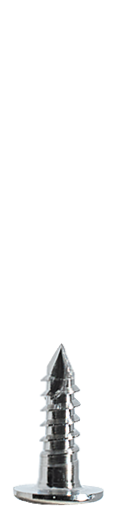

The FYxoss® selftap screws with lengths of 5, 7, and 10 mm are perfectly suited for the fixation of Yxoss CBR®. This is due to the ultra-flat, tissue-friendly screw head as well as the precisely fitting diameter of 1.35 mm.

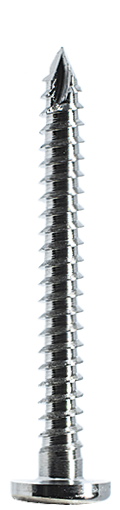

For the Shell technique, we recommend the lengths 10, 13, and 15 mm. The sharp tip and the three prismatic cutting edges enable self-tapping through the bone shell and the autologous bone.
The trapezoidal thread of the screws enables a solid hold of the bone block on the original bone. For this technique, we recommend the lengths 10, 13, and 15 mm.
